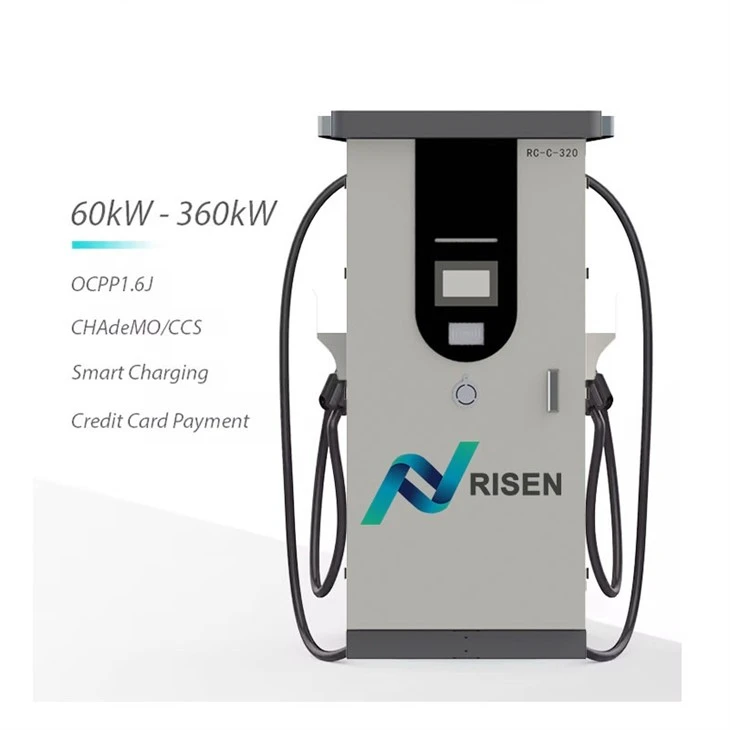

DC Quick Charger
● High-speed charging, nruab nrab lub sij hawm them txog 30 ~ 60mins
● Kev xaiv chaw nres nkoj yooj yooj yim, txhawb CCS, CHAdeMO, thiab GBT connectors
● Kev Nyab Xeeb Siab: Ua-hauv Hom B RCD rau kev tiv thaiv dej
● Txhawb OCPP 1.6 thiab OCPP 2.0
Ruichuang DC ceev fais tsheb them chaw nres tsheb nrog 60kW-240kW tso zis hluav taws xob, Qhov chaw nres nkoj dual muaj kev sib txawv nrog CCS1, CCS2, CHAdeMO, thiab GB / T chaw nres nkoj, ua rau lub tshuab charger sib haum nrog lub tsheb fais fab thoob ntiaj teb . thiab muaj cov ntaub ntawv zoo thiab muaj zog los xyuas kom cov cuab yeej siv tau ntev, ua rau nws zoo tagnrho rau ntau yam kev teeb tsa, sab hauv tsev thiab sab nraum zoov. Nws kuj tseem tuaj yeem ua tus kheej nrog cov logos thiab xim kom muaj qhov zoo ntawm koj hom.
Δ Max tso zis zog 60kW, 90kW, 120kW, 150kW, 180kW, 200kW
Δ Lub sijhawm them nyiaj 30 ~ 60mins
Δ Ib txhij them mus txog 2 EVs
Δ Txhawb ntau tus qauv them nrog CCS, CHAdeMO, thiab GB / T.
Δ Intelligent charging thiab dynamic load ntsuas
Δ 7'' LCD npo nrog user-friendly interface
Qhov zoo ntawm cov chaw them nqi ceev EV:
Δ Txhawb Multi-ports CCS1, CCS2, CHAdeMO, thiab GBT connector combain
Δ Chaw nres tsheb nyob deb saib xyuas
Δ Parallel charging ntawm DC ports
Δ Dynamic zog redistribution rau DC ports
Δ Ethernet / Wifi / 4G
Δ Tus nqi sib tw
Ruichuang tsim cov chaw them nqi ceev nrog lub peev xwm ntawm 60 txog 320 kW nrog ntau hom kev sib txuas: Type1, Hom 2, CHAdeMO, CCS. Lawv muaj peev xwm them tau 80% ntawm lub tsheb fais fab lub roj teeb hauv tsuas yog 40-60 feeb, nyob ntawm lub tsheb roj teeb. Cov chaw them nyiaj ceev tau dav siv nyob rau hauv chaw nres tsheb ntawm cov khw thiab chaw ua haujlwm, tsev so thiab tsev noj mov, cov chaw qoj ib ce thiab kev zoo nkauj, nrog rau cov chaw nres tsheb roj thiab raws txoj kev thiab txoj kev loj.
Product Detail Display
Qhia qhov chaw nres tsheb charger ev
Khoom Specification
| Fais fab Model | DCFC 60KW-120KW | DCFC 140KW-240KW | ||||
| Kev them nyiaj yug Connector | Dual GBT/CCS, lossis CCS/GBT + CHAdeMO | |||||
| Hom Input Voltage | TN-S (Peb Theem Tsib Hlau) | |||||
| Input voltage | 400V±15%/440V±15%/480V±15% | |||||
| Cov zis hluav taws xob | 200V-750V/150V-1000V | |||||
| Ua hauj lwm zaus | 45 ~ 65 Hz | |||||
| Hwj chim Factor | Ntau dua lossis sib npaug rau 0.99 | |||||
| Kev ua tau zoo | Ntau dua lossis sib npaug li 95% | |||||
| Tso zis tam sim no | 5~200A | 5~300A | 5~400A | 5~500A | 5~500A | 5~500A |
| Zaub | 7 '' LCD kov npo | |||||
| Kev tiv thaiv | Tshaj-Tam sim no, Tshaj-Voltage, Under-Voltage, Av-Fault, Tshaj-Circuit, Short-Circuit & Surge Protection ... thiab lwm yam. | |||||
| User Authentication | QR Code, RFID, Mobile APP, POS / Credit Card (Yeem) | |||||
| Kev sib txuas network | Kev Siv Internet Ntawm 4G / Wi-Fi / Ethernet | |||||
| Kev sib txuas lus raws tu qauv | OCPP1.6J los yog OCPP2. 0 | |||||
| Ua haujlwm kub | -30 degree ~ +50 degree | |||||
| Cia Kub | -35 degree ~ +55 degree | |||||
| Kev khiav dej num | Tsawg dua lossis sib npaug li 95% Tsis-Condensing | |||||
| Qib tiv thaiv | IP65 | |||||
| Suab nrov nrov | 60 dB | |||||
| Txoj kev txias | Cua txias | |||||
| Qhov Loj (W x D x H) | 840 x 750 x 1800mm (± 20mm) | 1000 x 950 x 1800mm (± 20mm) | ||||
| Cable Ntev | 5m los yog Customized | |||||
| Warranty | 24 Lub Hlis Warranty Muaj | |||||
