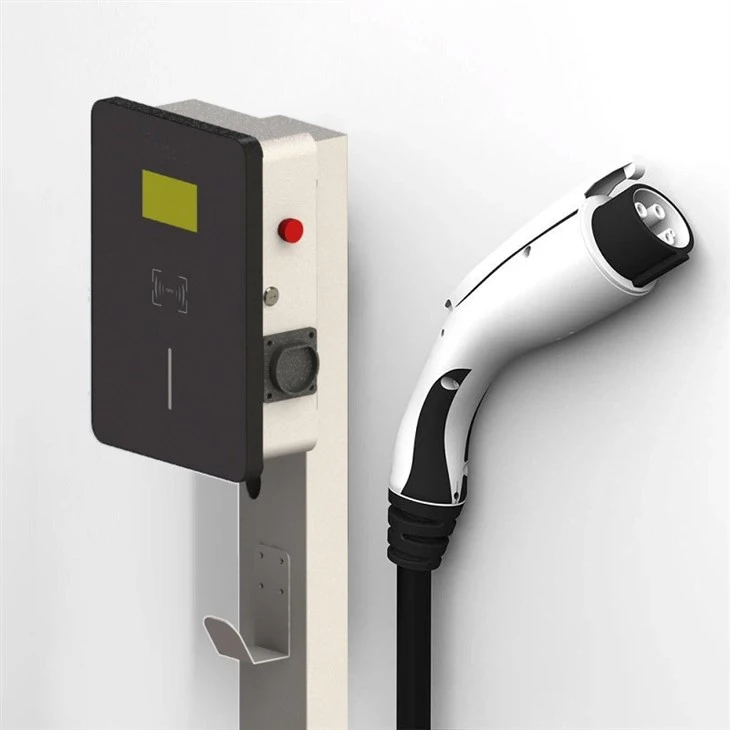

AC Charger Point
● Ib theem 32A 7kW lossis peb theem 32A 22kW
● Ethernet, Wi-Fi, Cellular kev twb kev txuas
● Tswj kev them nyiaj nrog mobile App
● Smart charging txhawb nqa dynamic load ntsuas
● Hom phom ib leeg lossis ob hom phom
Lub 7kW / 14kW AC charging chaw nres tsheb muaj qhov pom yooj yim thiab yog cov khoom tsim tshwj xeeb rau kev them nyiaj hauv tsev. Cov khoom no siv cov tswv yim tsim qauv thiab cov cuab yeej siv hluav taws xob hauv hluav taws xob, nrog rau qhov zoo xws li kev ntseeg siab, kev ua haujlwm yooj yim, thiab kev saib xyuas yooj yim.
Nws yog qhov tsim nyog rau ob qho tib si kev them nyiaj hauv tsev thiab kev lag luam, ua rau nws zoo tagnrho rau tsev, chaw ua haujlwm, chaw nres tsheb, thiab chaw them nyiaj rau pej xeem. Nws yog ib qho kev daws teeb meem zoo thiab yooj yim rau kev them hluav taws xob tsheb.
Core zog
EV CHARGING SOLUTION rau koj.
2 hom kev teeb tsa
txhawb phab ntsa-mount thiab Post mounted, IP65 tiv thaiv qib haum rau sab hauv tsev lossis sab nraum zoov.
Muaj zog & ua haujlwm tau zoo
Hwj chim them: 1-Phase 7kW/11kw & 3-Phase 22kW
muaj
Kev them nyiaj ntse
Tau tshaj OCPP1.6,
Txhawb APP tswj kom them
Kev Pab Cuam Tsis Txaus Siab
24-teev kev pabcuam online, kev qhia chaw taws teeb.
Khoom Specification
| Hwj chim | 7 kW/11 kW | 14 kW/22 kW |
| Tus naj npawb ntawm Plug | Ib qhov chaw nres nkoj | Ob chav chaw nres nkoj |
| Input voltage | Ib Theem 230V | Peb theem 400V |
| Tso zis tam sim no | Ib Theem 32A Max | Peb Theem 32A Max |
| Ua hauj lwm zaus | 50 ~ 60Hz | |
| Hom Connector | Hom -2 Tethered 3.5m / 5m | |
| Kev tiv thaiv hluav taws xob | Tshaj tam sim no, Nyob rau hauv voltage, Tshaj voltage, Tshaj kub, Surge tiv thaiv, luv luv Circuit Court, av txhaum |
|
| Kev sib txuas network | Ethernet, WLAN, 4G | |
| Kev sib txuas lus raws tu qauv | OCPP1.6J, OCPP2.0.1 | |
| Zaub | 4 '' LCD npo | |
| Ua haujlwm kub | -30 degree ~ 50 degree / -86 degree F ~ 122 degree F | |
| Cia Kub | -40 degree ~ 70 degree / -104 degree F ~ 158 degree F | |
| Ua haujlwm av noo | 5% ~ 95% tsis muaj condensation | |
| Kev tiv thaiv Ingress | IP65 | |
| Mounting Hom | Phab ntsa Mount / Pem teb ncej (yeem xaiv tau) | |
| Qhov Loj (H x W x D, mm) | 390mm x 30mm x 120mm | |
Peb cov ntsiab lus them nqi muaj qhov yooj yim thiab sleek tsim, ua rau lawv yooj yim thiab siv tau yooj yim. Tsis tas li ntawd, lawv txhim khu kev qha thiab yooj yim rau nruab, yog li koj tuaj yeem muaj kev thaj yeeb nyab xeeb ntawm lub siab paub tias koj lub tsheb hluav taws xob yuav npaj txhij mus tas li.
FAQ
Q. Koj lub sijhawm xa khoom yog dab tsi?
A: Feem ntau peb yuav npaj cov khoom xa tuaj hauv 20-35 hnub.
Q: Koj lub warranty rau EV chargers yog dab tsi?
A: Feem ntau 2 xyoos. Yog tias koj muaj cov cai tshwj xeeb thov hu rau peb cov neeg siv khoom.
Q: Cov chaw them nyiaj EV puas tuaj yeem siv sab nraum zoov?
A: Yog, Ruichuang EV charger yog tsim rau siv sab nraum zoov nrog kev tiv thaiv qib IP65, uas yog waterproof, plua plav, corrosion
resistant, thiab tiv thaiv xeb.
Q: Koj puas tuaj yeem luam peb lub logo ntawm cov khoom?
A: Yog, peb txhawb OEM thiab ODM kev pabcuam, thiab yuav muaj MOQ rau kev tsim qauv.
Q: Koj puas tuaj yeem kho cov lus ntawm kev ua haujlwm interface?
A: Yog lawm, tam sim no peb kuj muaj cov qauv hauv Fabkis, German, Italian, Mev, Portuguese, Lavxias, Czech, Finnish, Romanian, thiab
Thaib. Thiab peb tuaj yeem kho cov lus yog tias koj xav tau.
Cim npe nrov: Tuam Tshoj AC charger point manufacturers
